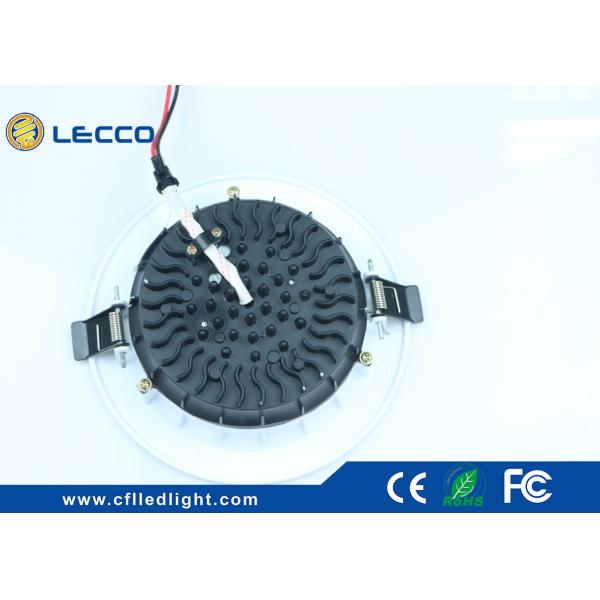

LED Recessed Downlight 15W SMD 5730 Pillar Type Die Casting 100LM /
Model No. : LDL-SMD15W-7
Certificate : CE RoHS FCC
Item Type : LED Downlight
Power : 15W
Place of origin : Jiaxing City
Input Voltage : 85 - 265V
Brand name : LECCO
Lumen : 100 LM / W
Warranty : 3 year
Working Temp. : - 40 - 60 ℃
1 . SDCM < 5 ,CRI > 80 Ra ,Luminous efficiency > 100 .
2 . The average lifetime of our LED bulb is at least 30 000h , we
garantee the quality for 3 years .
3 . Living up to the IEC62031 : 2008 & 62560 standard .
4 . Saving 80% electricity compared to traditional grille lamp with fluorescent tube .
5 . Can start under the condition of - 30 ℃ and low voltage .
6 . No flicker , No noise , No electromagnetic interference ( EMI )
7 . Using spray - painted aluminum frame , very simple and fashionable .
8 . 30 pcs SMD 5730 Chip , Epistar .
9 . Using pure die casting aluminum , haveing excellent heat conduction ,160 W / ( m.K ) .
10 . For the pack ,color box and master cartons .
11 . Using constant current driver with IC to make sure the led
chip life .
12 . We choose very good driver supplier like Meanwell,mosopower to
have constact current output to the LED chip , which is also safe .
13 . Easy to apply , can be recessed in the ceiling .
14 . All products are output strictly under ISO 9001 Quality
Management System and CE satisfied .
15 . Voltage : all of our LED products supply wide range voltage
input 85 - 265V .
|Type||LED Downlight SMD 15W Pillar Type|
|Optical Parameter||Color Rendering Index||> 80 Ra|
|Luminous Efficency||> 100 lm / w|
|Light Transmittance||> 90%|
|Luminous Decay||< 5% at 3000hrs , < 9% at 6000hrs|
|LED Chip Brand||Epistar|
|Junction Temperature||65 ℃|
|Chip Quantity||30 pcs SMD 5730|
|Power Factor||> 0.9|
|Isolated Power Supply||Yes|
|Input Voltage||85V - 265V|
|Current||Constact Current with IC|
|Dirver Brand||Mosopower , Wellpower , Meanwell , Lifud|
|Structural Parameters||Size||W 165 * H 50 mm|
|Materials||Die Casting Aluminum + PC|
|IP Rating||IP 20|
|Thermal Tranmissivity||160 W / ( m.K )|
|The Value of Permissible Voltage||< 5000V|
|Beam Angle||120 °|
|Operating Temp.||-20℃ to +40℃|
|Life Time||> 30 000H|
|Energy Efficiency Grade||A|
|Certification||CE / RoHS / FCC|
|Lumen||> 1500 LM|
Quality Control ( QC )
1 . Strict raw materials inspection .
2 . Technical parameter adjustment :
1 ) Technicians will tune the technical parameters of each items to
make sure the Wattage , P.F.living up to the requirement of
2 ) Destructive test , light it in the oven to be under the
conditions of high temperature and high voltage
3 ) Turn on off test , to make sure the life time of the lamp
4 ) Start test in low temperature and low voltage ( light in the
3 . In the mass production , our QC will take selective examination
on every step , such as Plug-in , Wave soldering , PCB test , Tube
glue , Assembly , Print , Ageing , Packing .
4 . we are testing every lamp before packed in the cartons .
5 . In the warehouse , our QCs will take sampling inspection before
load the container , if not qualified with the AQL , we will rework
6 . After laoding the container , we will trace the life time of
ech order , we will pick 10 pcs of each item to light in the ageing
room till the lamp die , so we can trace down the real life time of
each order .
1 . Payment term : T/T , 30% deposits in advance , 70% balance
before shipment .
2 . Samples can be provided for free , but the express fee need to
be payed for the first time , and can be returned after placing the
first order .
3 . Shipping freight are quoted under your requests .
4 . Shipping port : Shanghai / Ningbo .
5 . If not mentioned , all of our price is FOB price , and also can
be CFR or CIF
Frequently Asked Questions ( FAQ )
1 . About price
All is FOB prices , and If you don’t provide the quantity and
mention if need to OEM your brand , we qoute the wholesale prices
for our brand .
2 . About samples
we can provide samples for you to check and test for fee , but need
you to pay the express fee .
3 . About the pcking
Color box and cartons is witout design,and can use numper sticker
with your logo and brand .
4 . About your brand and color box
We can OEM your brand and printing the color box with your logo ,
but need the MOQ 500 pcs .
5 . About payment
1 ) Normall payment is 30% T / T deposit in advance,the 70% balance
paid before shipment .
2 ) TT paid against BL or L / C at sight also acceptable .
6 . About delivery time
Samples within 3 workdays , bulk purchase below MOQ 5 - 7 workdays
, others quantity we can discusse .
7 . About warranty
All panle lights are guaranteed for 3 years , if get bad we will
replace it one by one .
Widely used in home & commercial Lighting , applying in office
, Hallway , Hotel , room , shop , ect .
